Purpose

Steps to set up the Wi-Fi connection with the P630-A terminal. Includes preparation and testing for successful connection.

NOTE:  Before starting the connection process, follow these instructions to ensure a smooth transition and avoid configuration or device issues.

Pre-requisite

• Point Of Sale (POS) 'Command Prompt' application must be installed on the Windows computer.

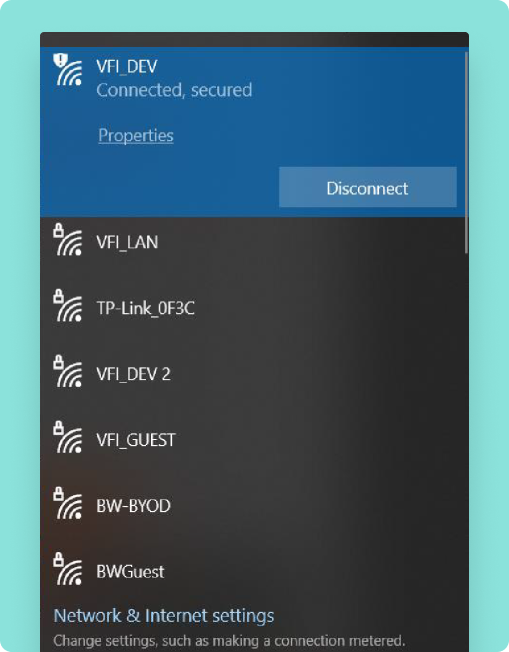

• OS computer must be connected to the Wi-Fi network.

Wi-Fi Connection Setup

1. Click on the ‘Command Prompt’ icon on the Windows computer.

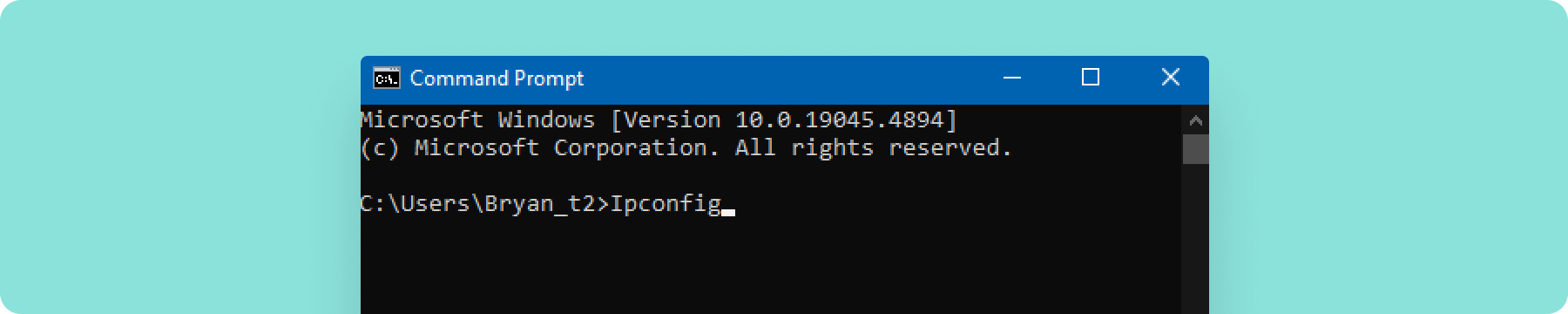

2. Type:  ipconfig

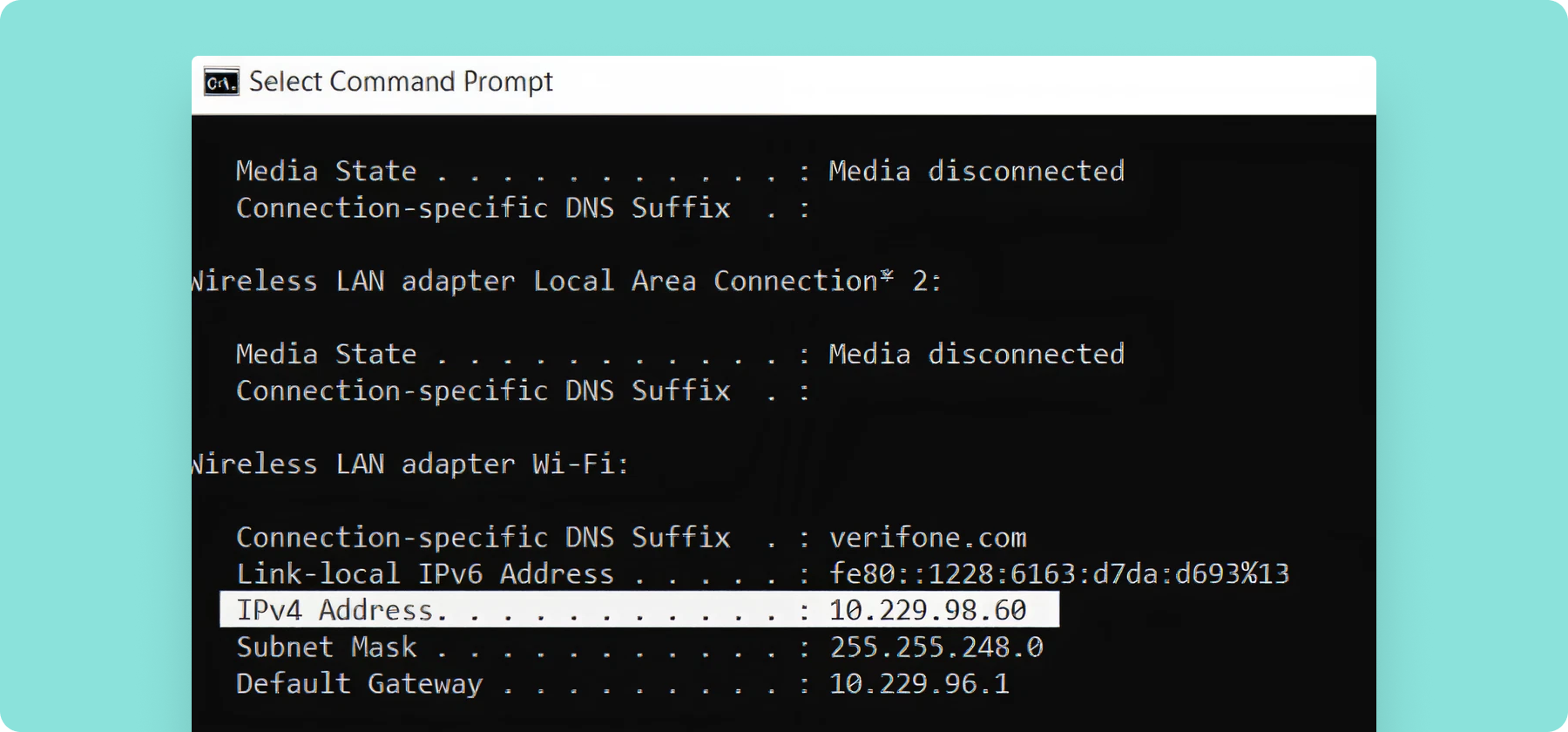

3. Copy the IP address of the network the system is connecting to.

On the P630-A terminal:

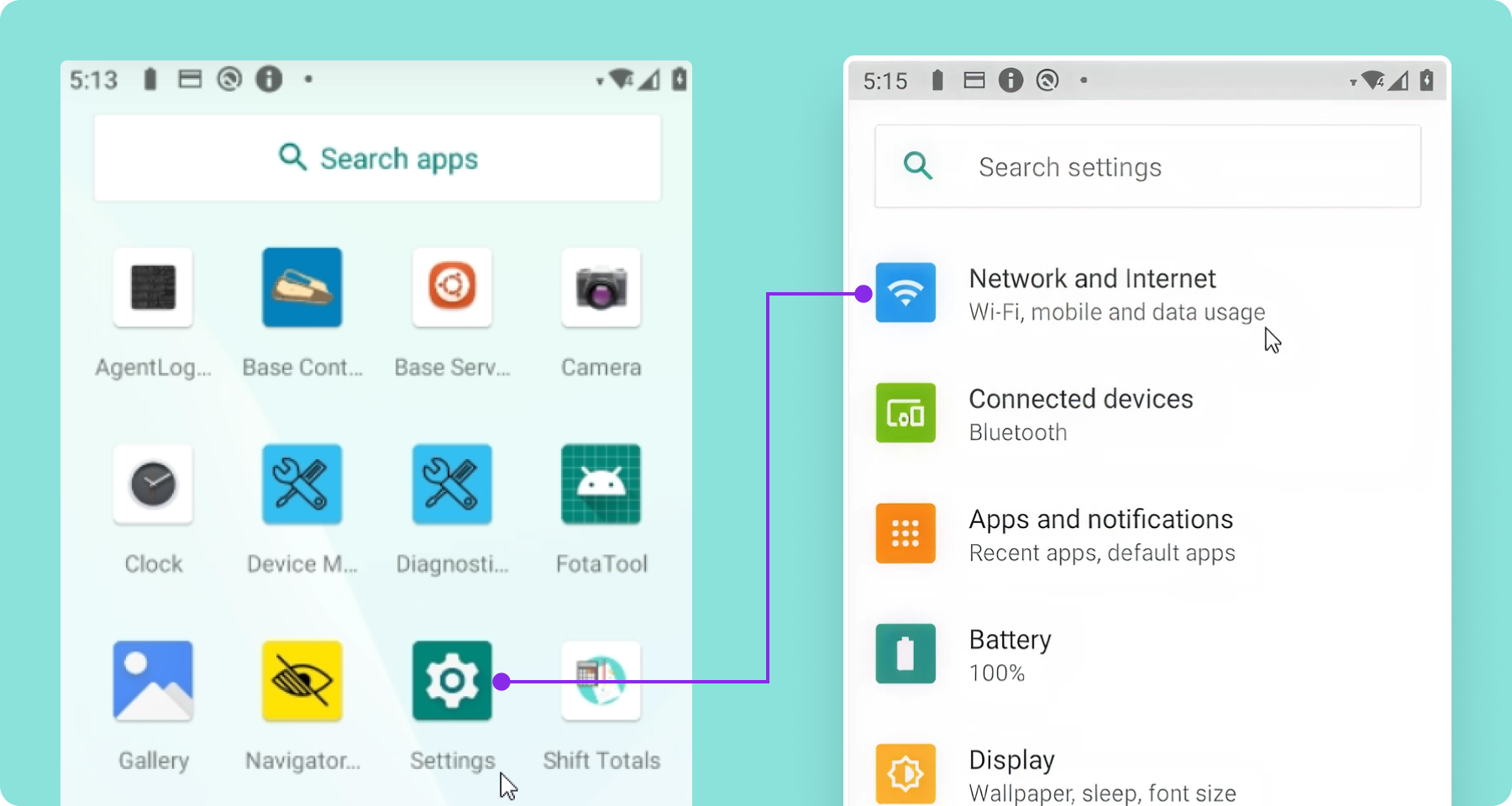

1. Go to 'Settings'.
2. Select 'Network and Internet'.

3. Connect to the Wi-Fi network – please ensure it is the same network the POS application is connecting to.
4. Once the network is connected, go to the launcher, and locate the POS application.

NOTE:  This example is using Linkly.

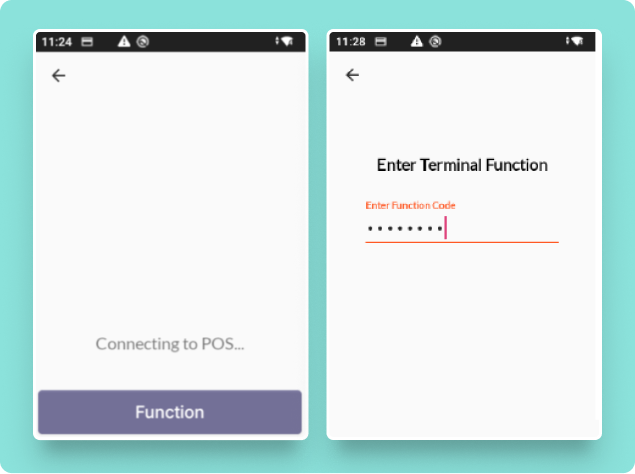

5. Click on the 'Function' button.
6. Enter the function code: 11112227.

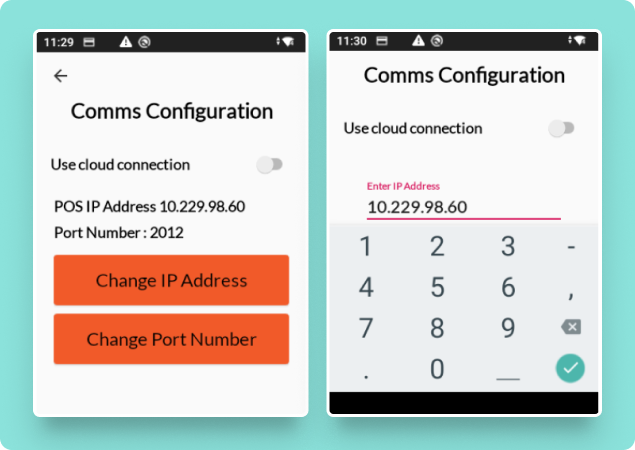

7. On the 'Comms Configuration' screen, click 'Change IP Address'.
8. Enter the IP address copied in Step 2.
9. Save the settings.

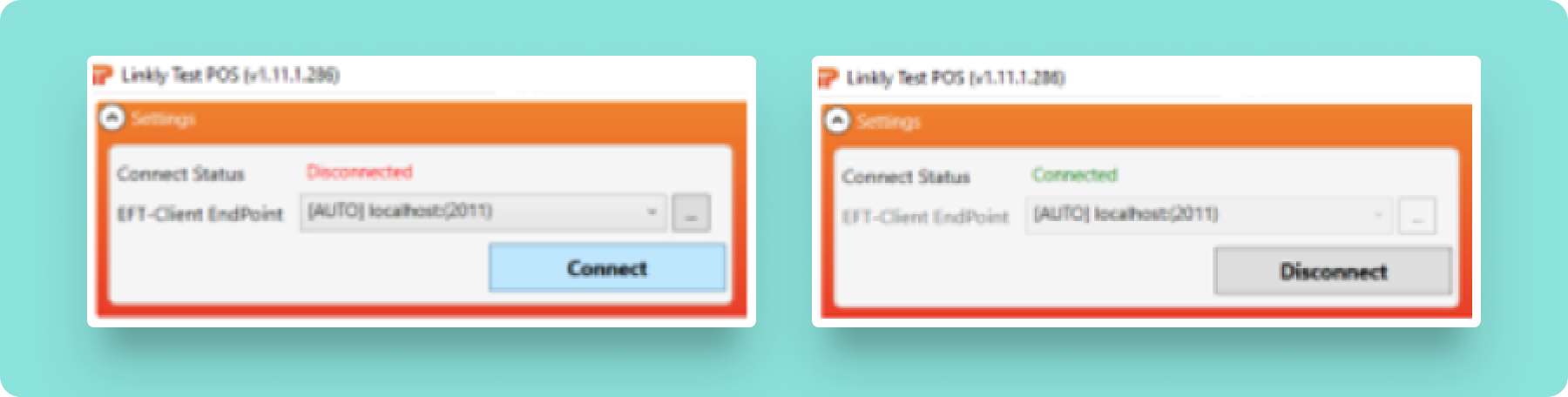

10. Open the POS app on the computer.
11. Click 'Connect' under 'Settings'.

NOTE:  If it is currently connected, disconnect, then re-connect.

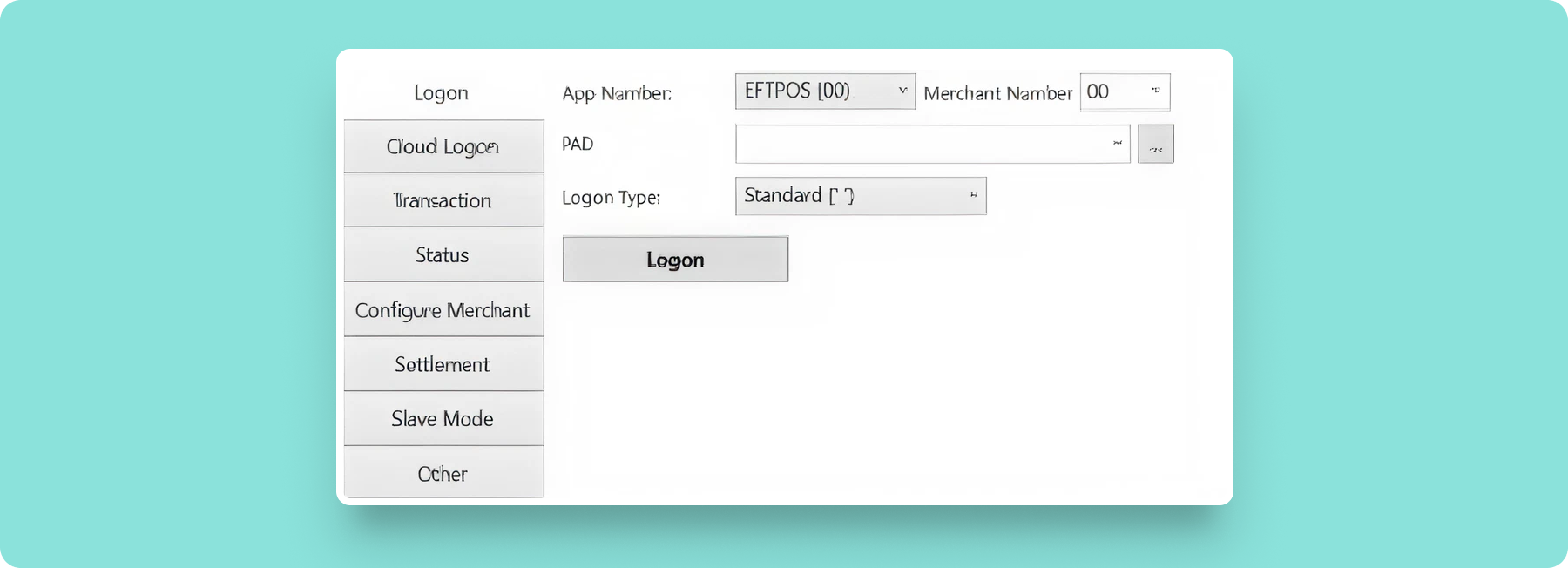

12. Once the computer is connected, go to the Logon tab on the POS app.
13. Click the 'Logon' button.

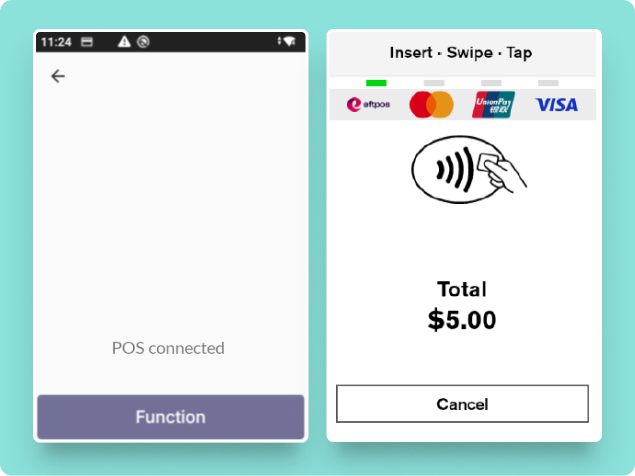

NOTE:  Terminal will also display a 'POS Connected' message.

14. Once the POS is connected, initiate a transaction to test if the terminal is receiving a request.
